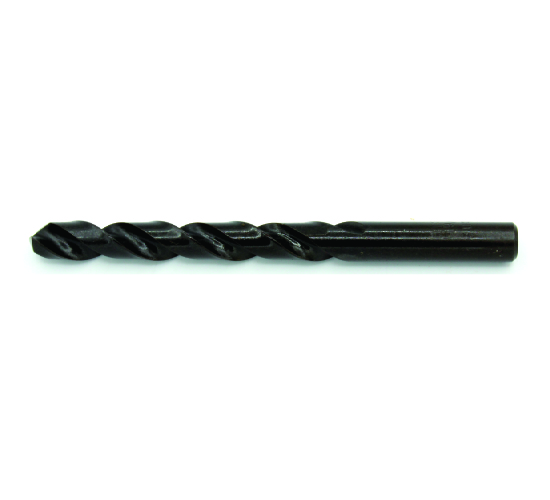

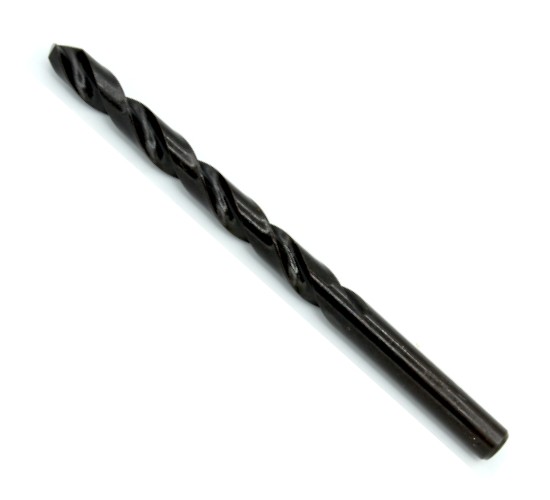

Fractional HSS Jobber Length Twist Drill Bit
- Industrial Quality for professionals. JOBBER LENGTH Drill Bit
- Ideal for quick, heavy duty & general purpose drilling in steel, sheet metal, PVC, MDF, oak, maple, aluminum and etc.
- 135 Degree split point tip prevents “wobbling/walking/skating” by eliminating the need for a center punch hole and ensures instant starts on contact
- Heat-treated, heavy duty M2 high speed steel body for extended bit life and optimal cutting performance
- Black Oxide finish provides extra wear, corrosion and abrasion resistance
- Spiral flute removes plug, debris, and heat while drilling. Round straight shank on all sizes
- Packaged as 12 bits per envelope for sizes 19/64″ and under. Packaged as 6 bits per envelope on sizes 5/16″ and above. Ideal for distributors and resellers
| Part Number | Cutting Diameter | Overall Length | FLUTE Length |
|---|---|---|---|
| 75-2004 | 1/16″ | 1-7/8″ | 7/8″ |
| 75-2005 | 5/64″ | 2″ | 1″ |
| 75-2006 | 3/32″ | 2-1/4″ | 1-1/4″ |
| 75-2007 | 7/64″ | 2-5/8″ | 1-1/2″ |
| 75-2008 | 1/8″ | 2-3/4″ | 1-5/8″ |
| 75-2009 | 9/64″ | 2-7/8″ | 1-3/4″ |
| 75-2010 | 5/32″ | 3-1/8″ | 2″ |
| 75-2011 | 11/64″ | 3-1/4″ | 2-1/8″ |
| 75-2012 | 3/16″ | 3-1/2″ | 2-5/16″ |
| 75-2013 | 13/64″ | 3-5/8″ | 2-7/16″ |
| 75-2014 | 7/32″ | 3-3/4″ | 2-1/2″ |
| 75-2015 | 15/64″ | 3-7/8″ | 2-5/8″ |
| 75-2016 | 1/4″ | 4″ | 2-3/4″ |
| 75-2017 | 17/64″ | 4-1/8″ | 2-7/8″ |
| 75-2018 | 9/32″ | 4-1/4″ | 2-15/16″ |
| 75-2019 | 19/64″ | 4-3/8″ | 3-1/16″ |
| 75-2020 | 5/16″ | 4-1/2″ | 3-3/16″ |
| 75-2021 | 21/64″ | 4-5/8″ | 3-5/16″ |
| 75-2022 | 11/32″ | 4-3/4″ | 3-7/16″ |
| 75-2023 | 23/64″ | 4-7/8″ | 3-1/2″ |
| 75-2024 | 3/8″ | 5″ | 3-5/8″ |
| 75-2025 | 25/64″ | 5-1/8″ | 3-3/4″ |
| 75-2026 | 13/32″ | 5-1/4″ | 3-7/8″ |
| 75-2027 | 27/64″ | 5-3/8″ | 3-15/16″ |
| 75-2028 | 7/16″ | 5-1/2″ | 4-1/16″ |
| 75-2029 | 29/64″ | 5-5/8″ | 4-3/16″ |
| 75-2030 | 15/32″ | 5-3/4″ | 4-5/16″ |
| 75-2031 | 31/64″ | 5-7/8″ | 4-3/8″ |
| 75-2032 | 1/2″ | 6″ | 4-1/2″ |
Fractional hss jobber length black oxide twist drill bit is perfect for drilling in both metal and wood such as steel, oak, MDF. First, these twist drill bits feature a 135 degree split point tip that eliminates “walking” and ensures instant starts. Second, all sizes of these fractional jobber length drill bits contain a round, straight shank. Third, the M2 high speed steel material with black oxide finish maximizes cutting performance and durability.
