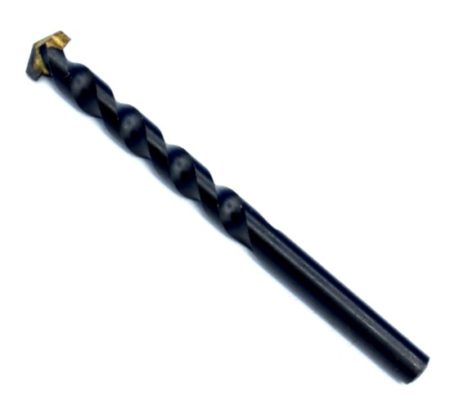

Hammer Percussion Masonry Drill Bits

  • Hammer percussion drill bit lasts longer and drills faster than slow spiral masonry drill bits
  • Perfect for hammer and percussion drilling in brick, concrete, tile, stone, and cinder blocks
  • Industrial Quality for professionals and contractors. Bulk packaging for distributors and resellers
  • Heat-treated, heavy duty steel alloy body and spiral flutes for extended bit life, fast drilling speeds, and quick chip removal
  • GOLD Tungsten Carbide Tip for heavy duty drilling and the best cutting performance. BLACK OXIDE finish
  • Precision grounded from solid one piece design for exact specifications to ensure accurate holes

Part Number Cutting Diameter Overall Length FLUTE Length Shank Size
54-183 1/8″ 3″ 1-1/2″ 1/8″ Straight
54-3164 3/16″ 4″ 2-1/2″ 3/16″ Straight
54-3166 3/16″ 6″ 4″ 3/16″ Straight
54-7324 7/32″ 4″ 2-1/2″ 7/32″ Straight
54-144 1/4″ 4″ 2-1/2″ 1/4″ Straight
54-146 1/4″ 6″ 4″ 1/4″ Straight
54-1412 1/4″ 12″ 10″ 1/4″ Straight
54-1418 1/4″ 18″ 16″ 1/4″ Straight
54-1424 1/4″ 24″ 22″ 1/4″ Straight
54-5164 5/16″ 4″ 2-1/2″ 1/4″ Straight
54-5166 5/16″ 6″ 4″ 1/4″ Straight
54-51612 5/16″ 12″ 10″ 1/4″ Straight
54-51618 5/16″ 18″ 16″ 1/4″ Straight
54-51624 5/16″ 24″ 22″ 1/4″ Straight
54-384 3/8″ 4″ 2-1/2″ 1/4″ Straight
54-386 3/8″ 6″ 4″ 3/8″ Straight
54-3812 3/8″ 12″ 10″ 3/8″ Straight
54-3818 3/8″ 18″ 16″ 3/8″ Straight
54-3824 3/8″ 24″ 22″ 3/8″ Straight
54-7166 7/16″ 6″ 4″ 3/8″ Straight
54-71612 7/16″ 12″ 10″ 3/8″ Straight
54-71618 7/16″ 18″ 16″ 3/8″ Straight
54-124 1/2″ 4″ 2-1/2″ 3/8″ Straight
54-126 1/2″ 6″ 4″ 3/8″ Straight
54-1212 1/2″ 12″ 10″ 3/8″ Straight
54-1218 1/2″ 18″ 16″ 3/8″ Straight
54-1224 1/2″ 24″ 22″ 3/8″ Straight
Sygma hammer percussion drill bits(54-1XXX, 54-3XXX, 54-5XXX, 54-7XXX, 54-9XXX series) are ideal for heavy duty drilling into brick and concrete. First, these drill bits feature a tungsten carbide tip and extra hardened heat-treated steel body for superior cutting performance. Second, these hammer percussion drill bits contain a straight shank to firmly grip with 3 jaw chucks. Moreover, these drill bits last longer and drill faster than the masonry drill bits.
