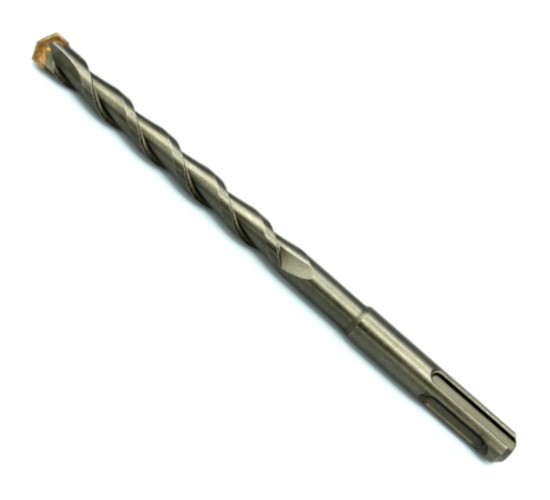

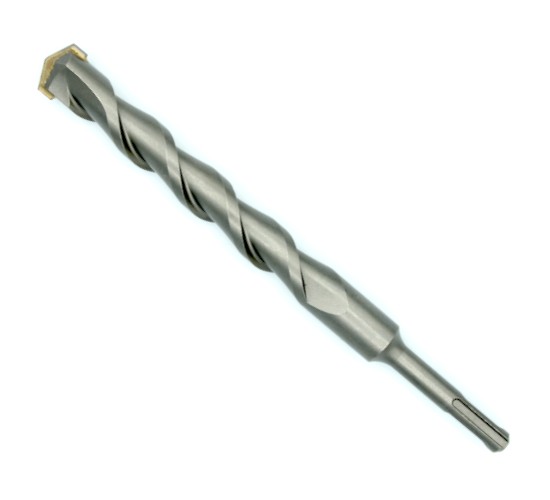

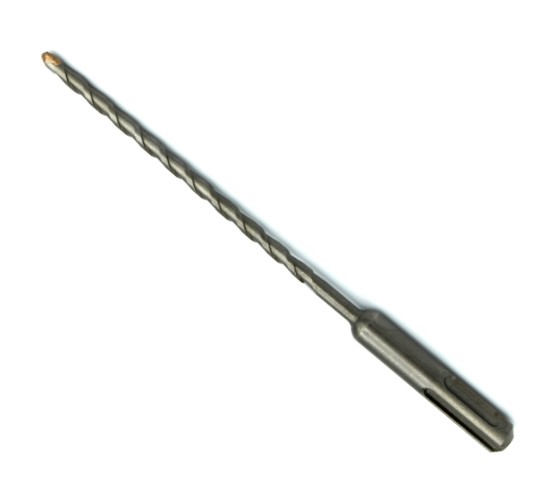

SDS PLUS Rotary Hammer Drill Bit
- Ideal for hammer drilling in brick, concrete, tile, stone, and cinder blocks
- Industrial Quality for professionals, distributors and resellers
- Heat-treated, heavy duty steel alloy body with spiral flutes
- Tungsten carbide tipped with a single cutter
- Precision grounded from solid one piece design for exact specifications to ensure accurate holes
- 3/8″ SDS PLUS shank allows for a sliding back and forth action with rotary hammer chucks and these bits can be pushed into spring loaded chucks
| Part Number | Cutting Diameter | Overall Length |
|---|---|---|
| 73-3010 | 3/16″ | 4″ |
| 73-3020 | 3/16″ | 6″ |
| 73-3025 | 3/16″ | 9″ |
| 73-3028 | 3/16″ | 12″ |
| 73-3029 | 7/32″ | 6″ |
| 73-3030 | 1/4″ | 4″ |
| 73-3040 | 1/4″ | 6″ |
| 73-3045 | 1/4″ | 9″ |
| 73-3048 | 1/4″ | 12″ |
| 73-3050 | 5/16″ | 6″ |
| 73-3055 | 5/16″ | 9″ |
| 73-3058 | 5/16″ | 12″ |
| 73-3060 | 3/8″ | 6″ |
| 73-3065 | 3/8″ | 9″ |
| 73-3070 | 3/8″ | 12″ |
| 73-3075 | 3/8″ | 18″ |
| 73-3078 | 3/8″ | 24″ |
| 73-3080 | 7/16″ | 6″ |
| 73-3084 | 7/16″ | 12″ |
| 73-3088 | 7/16″ | 18″ |
| 73-3090 | 1/2″ | 6″ |
| 73-3095 | 1/2″ | 9″ |
| 73-3100 | 1/2″ | 12″ |
| 73-3105 | 1/2″ | 18″ |
| 73-3108 | 1/2″ | 24″ |
| 73-3110 | 9/16″ | 6″ |
| 73-3120 | 9/16″ | 12″ |
| 73-3125 | 9/16″ | 18″ |
| 73-3130 | 5/8″ | 6″ |
| 73-3135 | 5/8″ | 9″ |
| 73-3140 | 5/8″ | 12″ |
| 73-3145 | 5/8″ | 18″ |
| 73-3148 | 5/8″ | 24″ |
| 73-3150 | 3/4″ | 9″ |
| 73-3160 | 3/4″ | 12″ |
| 73-3170 | 3/4″ | 18″ |
| 73-3178 | 3/4″ | 24″ |
| 73-3180 | 7/8″ | 9″ |
| 73-3185 | 7/8″ | 12″ |
| 73-3190 | 7/8″ | 18″ |
| 73-3200 | 1″ | 9″ |
| 73-3210 | 1″ | 12″ |
| 73-3220 | 1″ | 18″ |
Sygma 3/16″x4″ SDS plus rotary hammer drill bits feature a tungsten carbide tip with a single cutter and spiral flutes for quick drilling and efficient chip removal. First, these SDS plus hammer drill bits contain a SDS plus shank to allow these bits to tightly fit onto spring loaded rotary hammer chucks. Second, the back and forth sliding motion in a chuck provides the maximum amount of impact energy. Third, these drill bits are perfect for drilling clean, accurate holes in brick and concrete.
